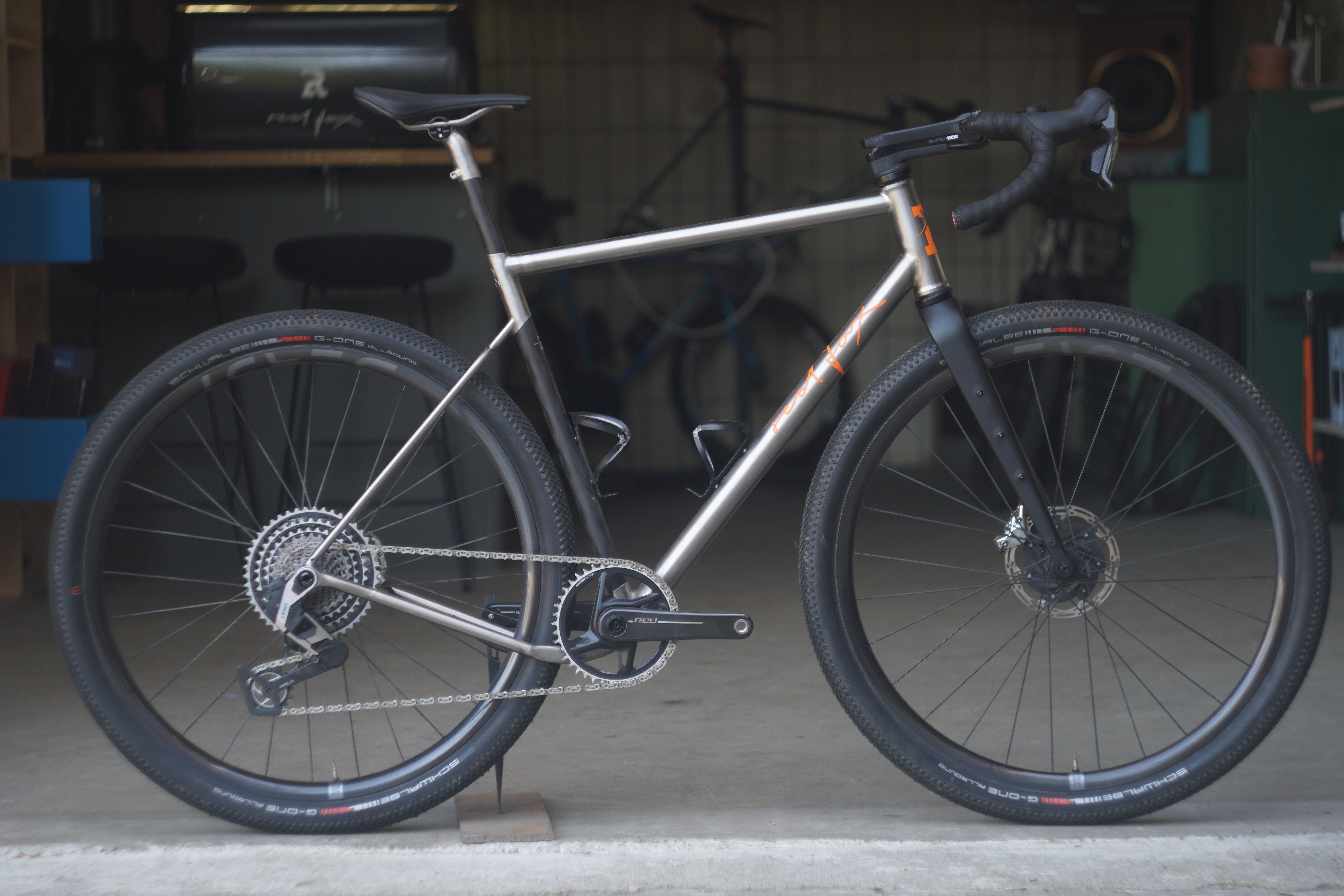

Red Fox Trespass

Our Trespass bike is the ultimate choice for the gravel enthusiast.

We have created a beautiful performance-oriented do it all gravel machine. Whether you’re into racing, ultra-long distances, or the occasional weekend session with your mates, this is for you. Crafted from aerospace grade titanium alloys and carbon, it combines shock-absorbing comfort with lightweight strength and stiffness. With space for up to 2.1 inch (53 mm) wide tires and multiple bikepacking options, it’s perfect for epic adventures or quick escapes.

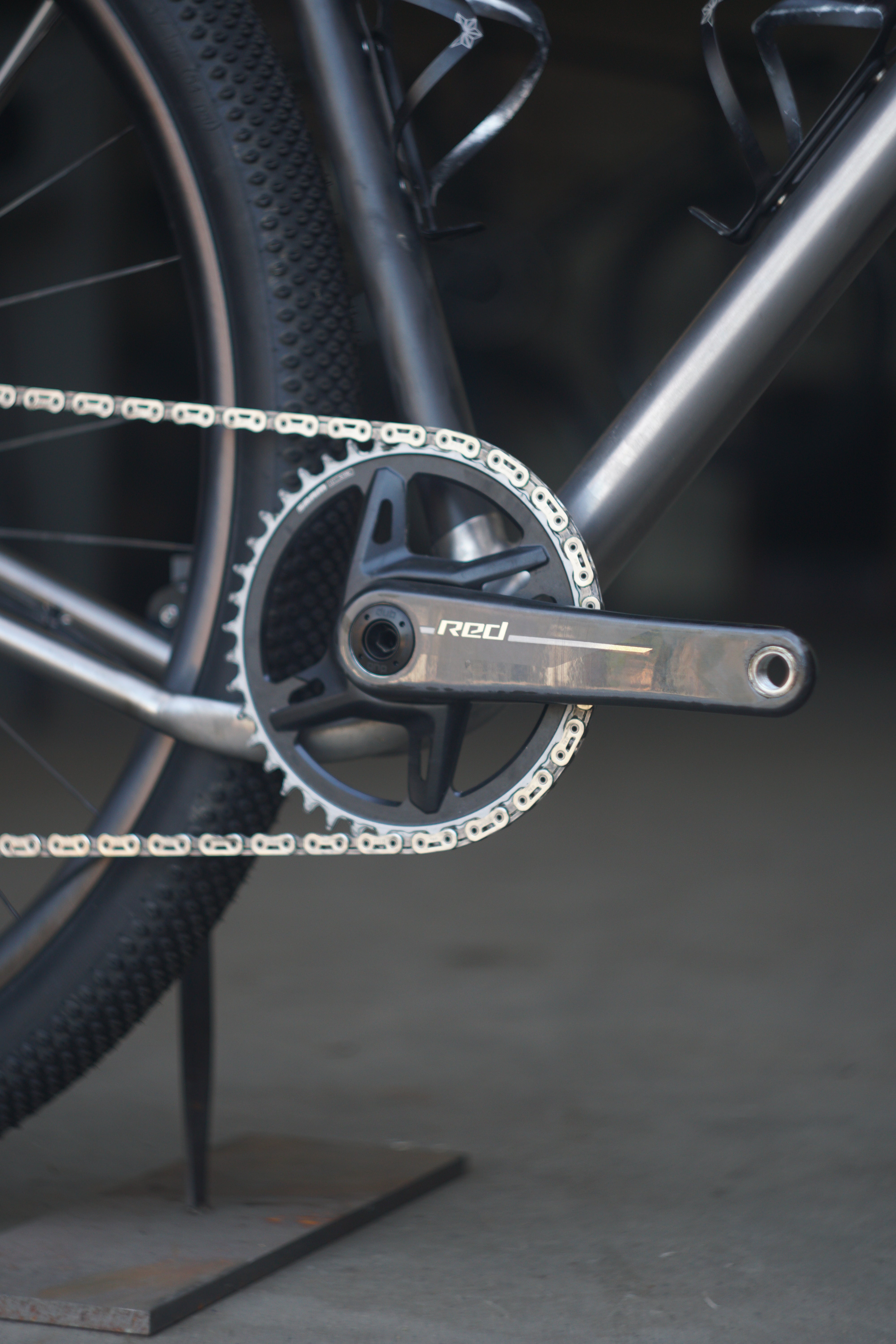

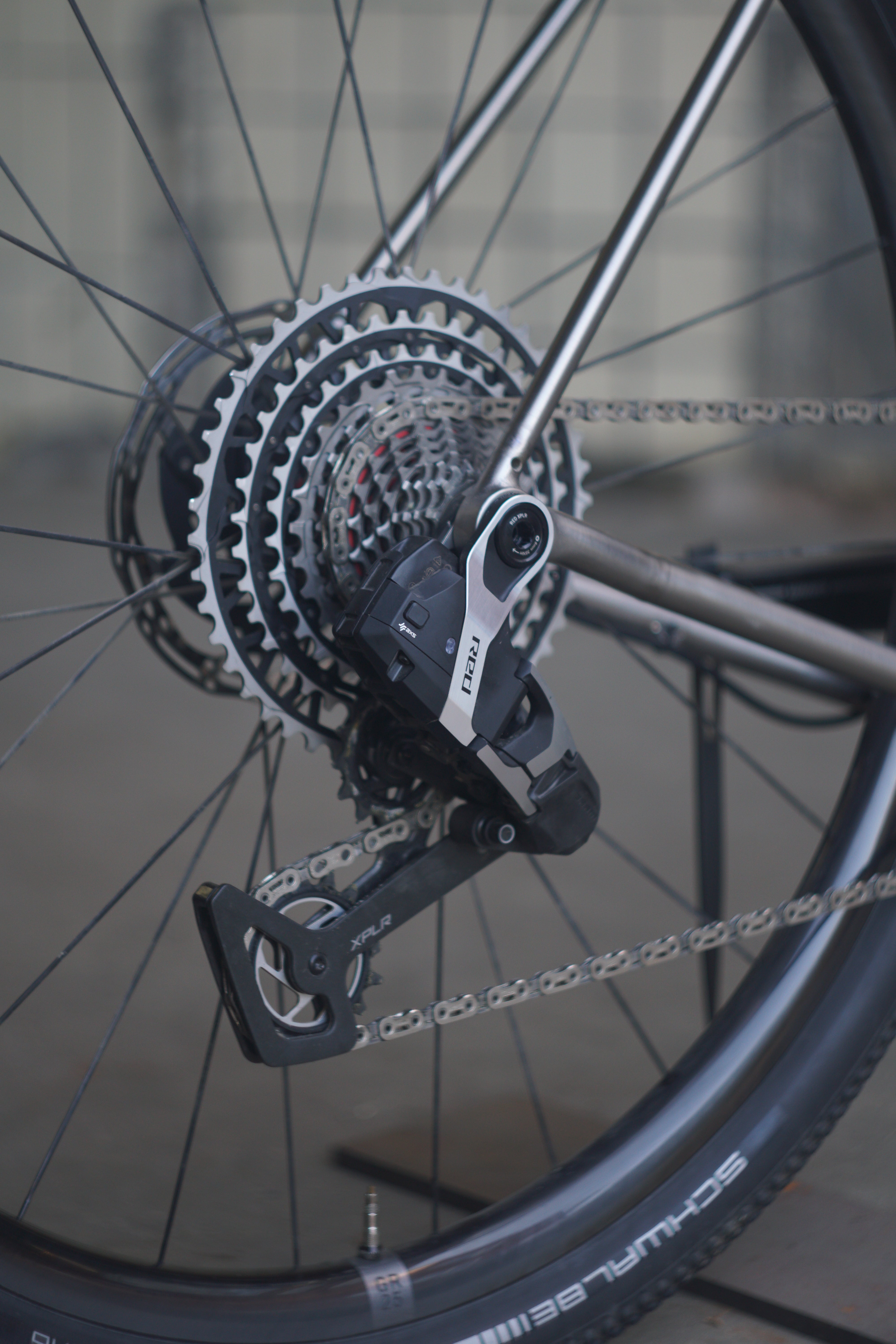

This version comes with the tried and tested Sram Etap Red groupset, beautiful and aerodynamic Beast components, Beast carbon wheels, as well as Centreline brake rotors. Oh, and we’ve slammed on our own custom stem! We love the Red groupset for its top-of-class performance and looks, and its superior ride feel compared to other groupsets. We are head over heels for Beast, with their stunning carbon weaves and aerodynamic components – an absolute joy to ride with. The bike also comes with a Columbus carbon fork and with a Ceramic Speed headset.

Technical Specifications

– Tire clearance up to 53 x 700c
– DI2 or Sram wireless compatible
– Flat mount disk brakes 140mm or 160mm
– 3 sets of bottle mounts
– I ntegrated seat post option with 3D printed topper
– T47 – 68mm bottom bracket shell
– Fender mounts
– 44mm headtube
– ZS44/EC44Thru-axle
– 12x100mm front and 12x142mm rear
– Available in 7 proven geometries

Construction

– 3D printed parts are designed in house
– Tubing is double butted grade 9 Titanium (Ti 3AL 2.5V) and custom carbon
– Machined and 3D printed parts are grade 5 Titanium (Ti 6 AL 4V)
– The frames are TIG welded and epoxy bonded

Thinking of a custom size? Get in touch.
