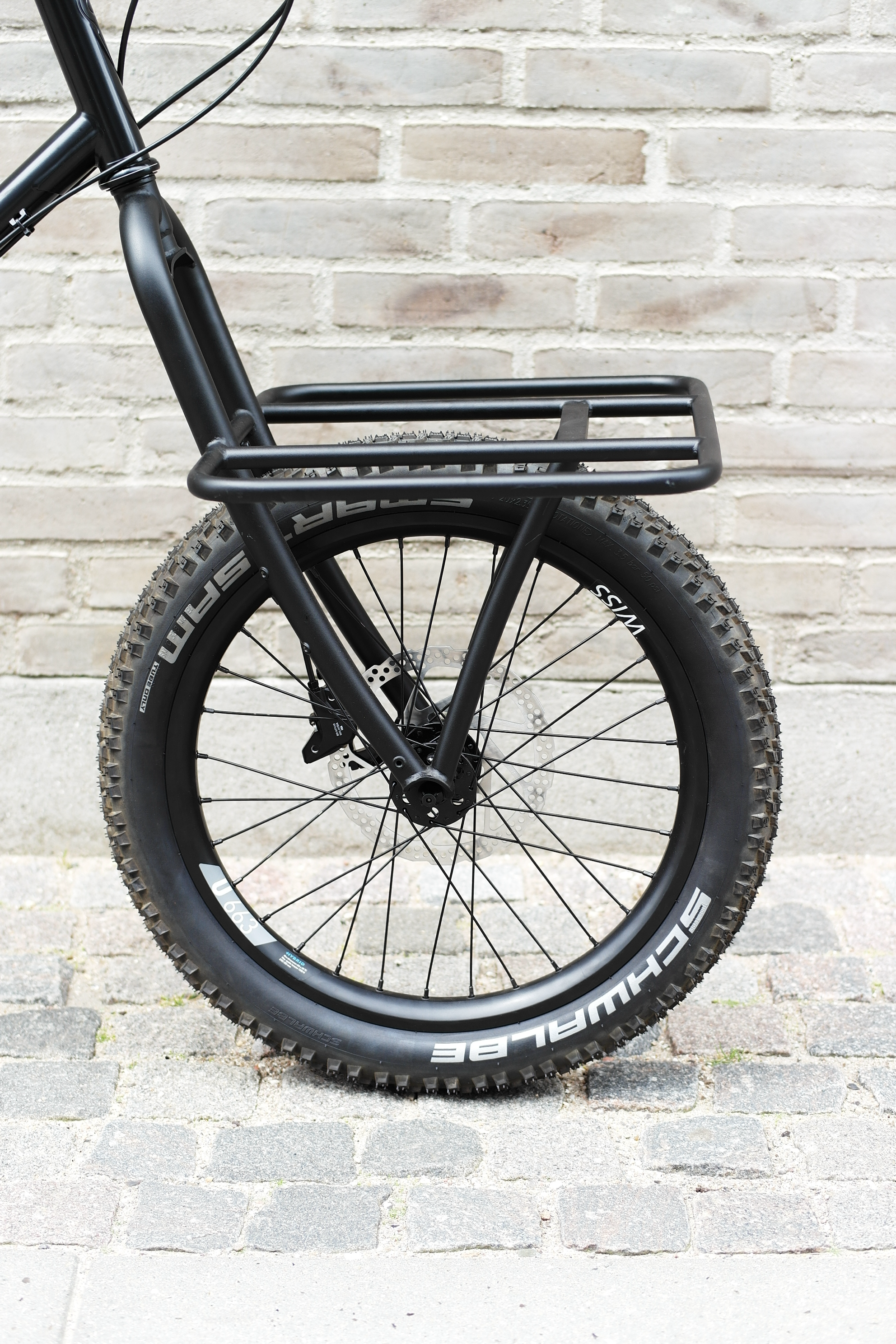

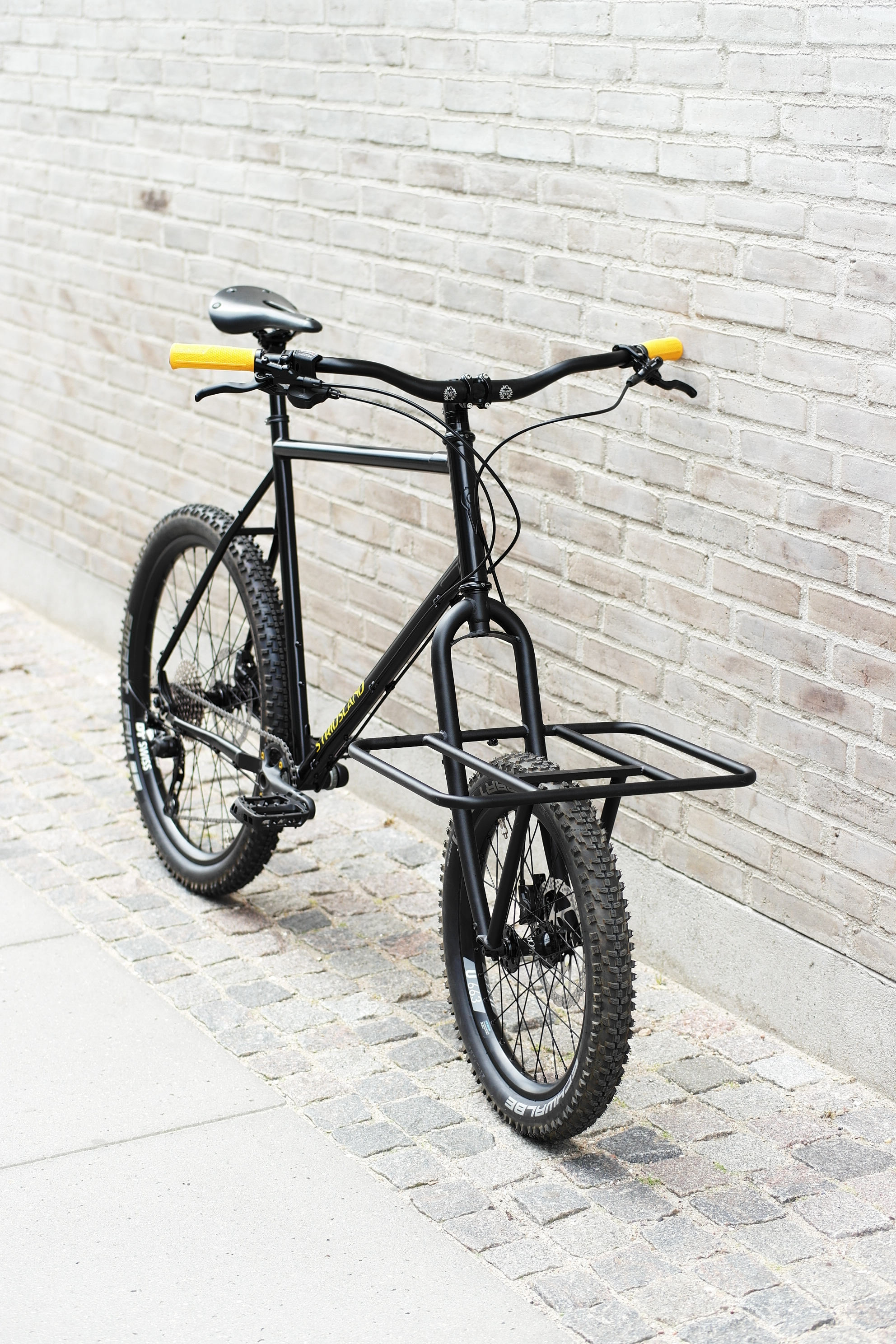

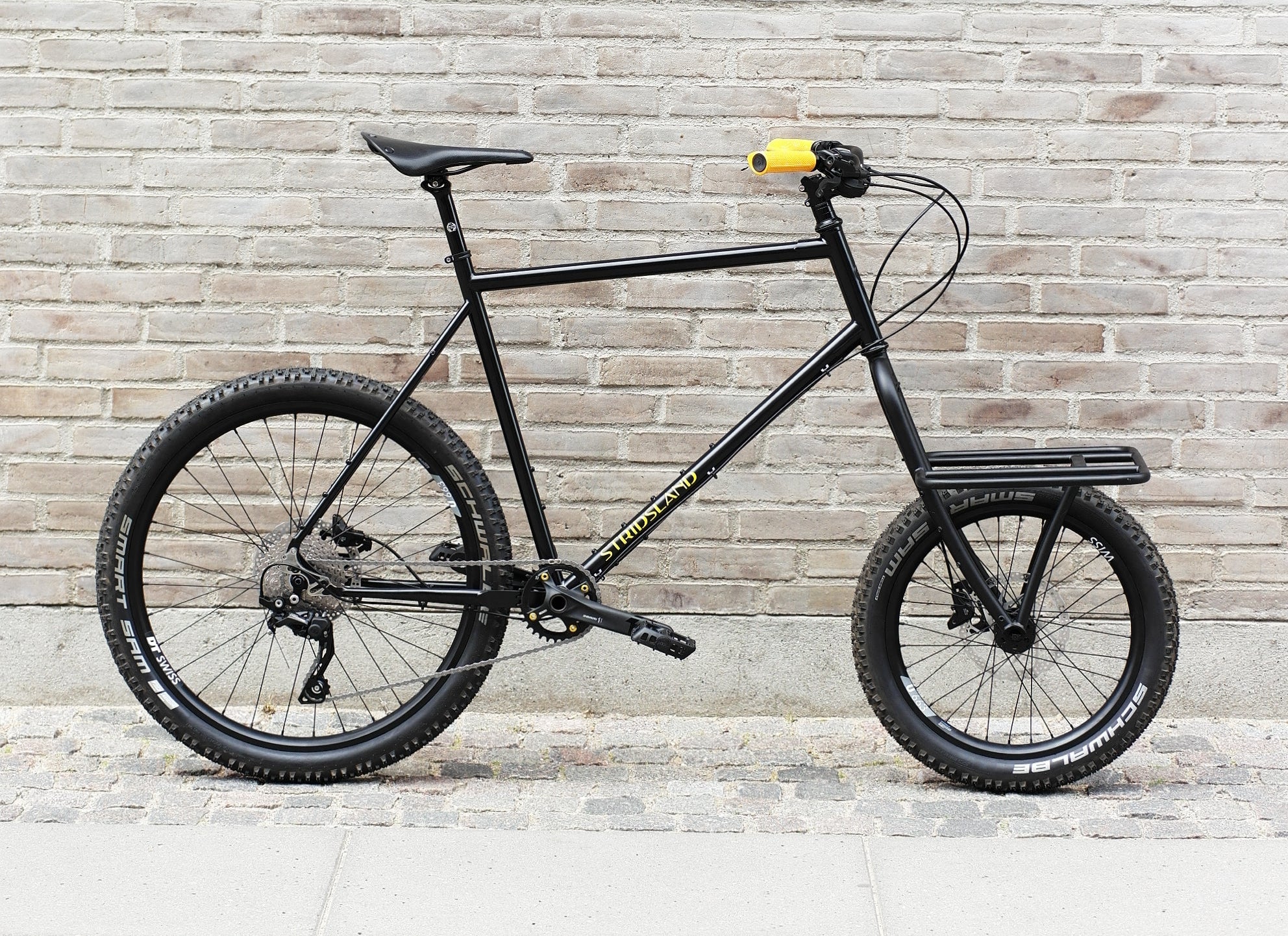

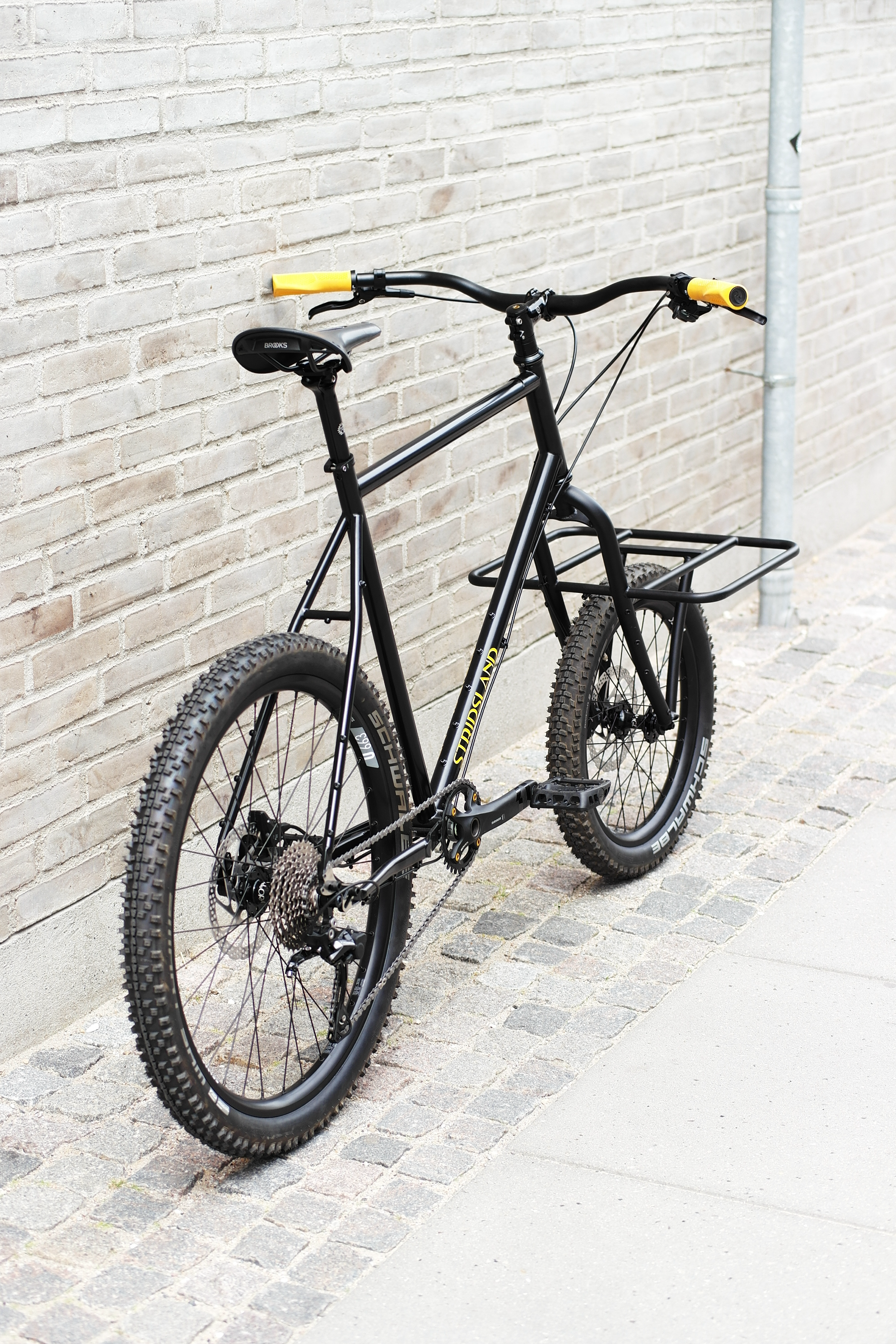

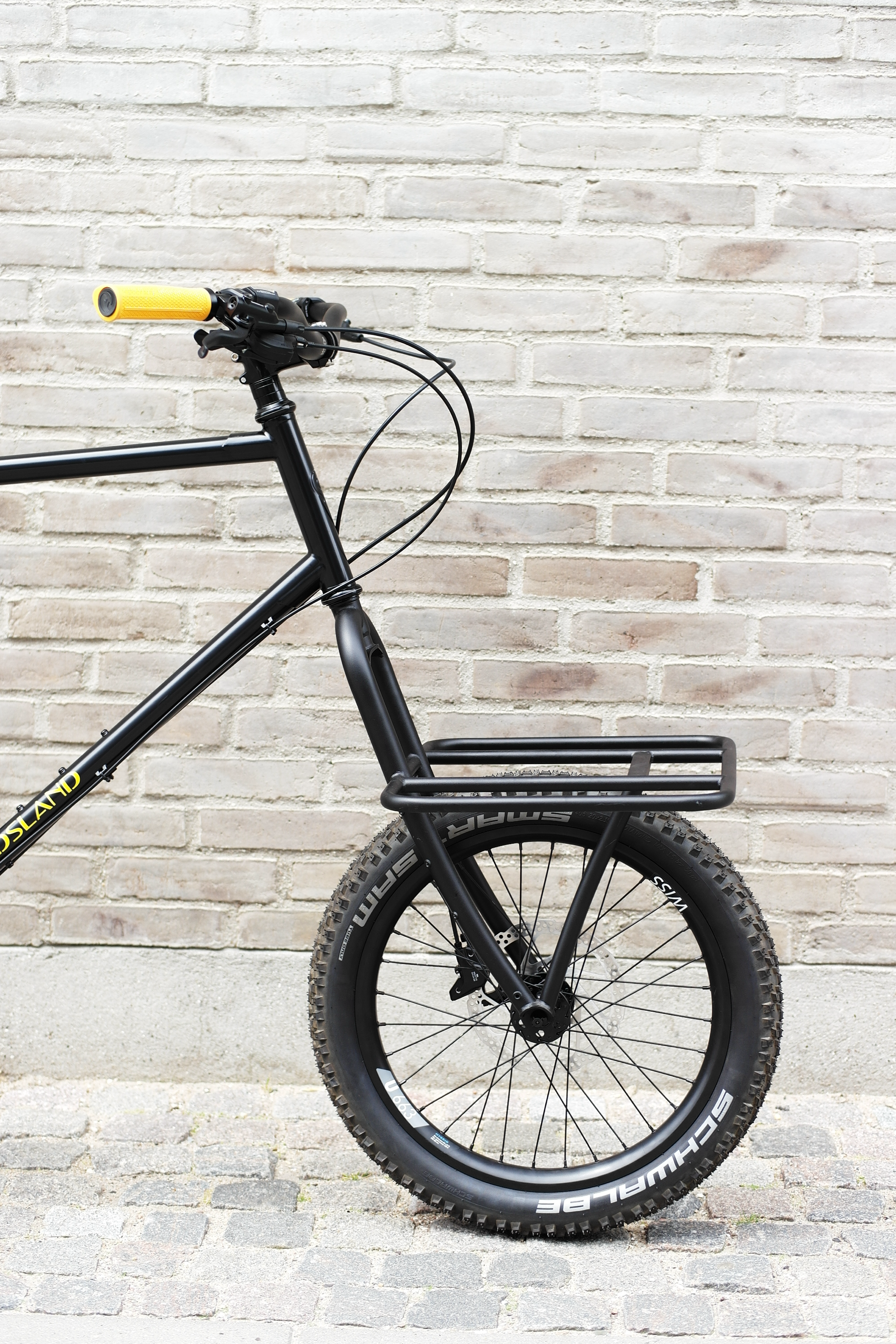

Tractor Fork

The Tractor fork is designed to replace your existing fork and front wheel. This gives you a cargo platform to transport stuff up to 30kg. Using a smaller wheel lowers the center of gravity creating a more stable ride.

Based on existing designs with a different look and tweaked so it rides well with weight. This cargo fork turns you bike into a light weight cargo bike.


Technical Specs


Axle to Crown – 400mm
400mm A to C is what the Tractor fork is designed around… meaning if your existing fork has this measurement +/- 10mm then this fork will work with your bike. This keeps the bikes original geometry, so the frame will be in the same position.
Your can also change the size of the tire in order to match the original geo of your frame.
Any thing out side 400mm +/- 10mm will be rideable but not optimal.

Head tube angle – 72 degrees
If your bike does not have a 72 degree head angle don’t worry it will still fit. If you have a steeper HT angle the rack will tilt forward and the opposite if you have a slacker HT angle.

Steerer tube – 1 1/8 inch, 350mm uncut length
This dimension is important. If your existing bike has a 1 inch steerer tube this fork will NOT work. Otherwise you are good to go!

Axle – 9 x 100mm QR
This fork uses the very common 100mm x 9mm axle. No bolt thru options here.

Brakes – Disk
160mm rotor will do ya fine

Mounts – Fender/Lights/Bottles
There are mounting points for a light, a fender and two water bottles.

Rack – Pizza box size
The rack is 450mm x 350mm. Stack up them pizzas!

Paint – Black
Black like the night sky! low gloss powder coat

Wheel – 20”
For use with a 20’’ (406mm) wheel. Max 2.4’’ tire

Material/Construction
TIG welded chromoly steel.
